R-1234yf (also known as HFO-1234yf) is a next-generation hydrofluoroolefin (HFO) refrigerant designed to replace high global warming potential (GWP) refrigerants like R-134a in mobile air conditioning (MAC) systems. Developed as a low-GWP, zero ozone-depleting alternative, R-1234yf offers an environmentally safer solution without sacrificing cooling performance.
Since its commercial rollout in the 2010s, R-1234yf has become the industry standard in automotive air conditioning across Europe, North America, and parts of Asia. Backed by regulatory compliance, car manufacturers have adopted R-1234yf in millions of vehicles to meet climate change goals and international refrigerant regulations.
This article explores R-1234yf in detail—its chemical profile, thermodynamic properties, environmental impact, safety characteristics, performance, regulations, and future potential in the global refrigerant market.
1. What is R-1234yf?
- Chemical Name: 2,3,3,3-Tetrafluoropropene
- Chemical Formula: C₃H₂F₄
- Molecular Weight: 114 g/mol
- ASHRAE Designation: R-1234yf
- Safety Classification: A2L (non-toxic, mildly flammable)
- Refrigerant Type: Hydrofluoroolefin (HFO)
R-1234yf is the first commercially available refrigerant in the HFO family, developed by Honeywell and DuPont (now Chemours). It was designed as a drop-in replacement for R-134a in automotive applications with similar performance but drastically lower environmental impact.
2. Key Physical and Thermodynamic Properties
| Property | R-1234yf |
|---|---|
| Chemical Formula | C₃H₂F₄ |
| Boiling Point | –29.5°C |
| Critical Temperature | 94.7°C |
| Critical Pressure | 3.38 MPa (490 psi) |
| Ozone Depletion Potential (ODP) | 0 |
| Global Warming Potential (GWP) | 4 |
| Flammability Class | A2L (Mildly Flammable) |
| Atmospheric Lifetime | ~11 days |
| Latent Heat of Vaporization | 137 kJ/kg |
R-1234yf is thermodynamically similar to R-134a, making it an ideal substitute with minimal system changes in terms of components and design.
3. Environmental Impact
🌎 Zero Ozone Depletion Potential (ODP)
R-1234yf is chlorine-free and has no ozone-depleting substances, helping protect the stratospheric ozone layer.
🌱 Ultra-Low Global Warming Potential (GWP)
With a GWP of 4, R-1234yf dramatically reduces the environmental impact compared to R-134a (GWP 1,430). This makes it compliant with:
- EU Mobile Air Conditioning (MAC) Directive
- U.S. EPA SNAP regulations
- Kigali Amendment to the Montreal Protocol
GWP Calculator Online: GWP Calculator (Refrigerant Calculator)
⏳ Short Atmospheric Lifetime
R-1234yf breaks down rapidly (around 11 days) in the atmosphere, unlike HFCs which persist for years. It decomposes into non-toxic byproducts, further reducing its climate impact.
4. Applications of R-1234yf
R-1234yf is primarily used in the automotive industry, particularly for vehicle air conditioning systems, but is expanding to other sectors.
🚗 Automotive Air Conditioning (MAC)
R-1234yf is now standard in most new vehicles sold in:
- North America
- Europe
- South Korea
- Japan
Vehicle manufacturers using R-1234yf include Ford, GM, Mercedes-Benz, Toyota, BMW, Honda, Hyundai, and many more.
🚌 Commercial Vehicle HVAC
Used in buses, trucks, and vans, especially where environmental compliance is mandatory.
🧊 Refrigeration and Heat Pumps (Emerging Use)
Some heat pumps and vending machines are adopting R-1234yf due to its ultra-low GWP, although uptake is still limited compared to R-1234ze or CO₂ in these sectors.
5. Benefits of R-1234yf
✅ 1. Environmentally Safe
- GWP < 1% of R-134a
- Rapid atmospheric breakdown
- No long-term accumulation
- Ozone safe
✅ 2. Easy Retrofit from R-134a
- Similar thermodynamic properties
- Compatible with existing lubricants (POE oils)
- Minimal design changes
- Faster industry adoption
✅ 3. Regulatory Compliance
- Meets global and local refrigerant phase-down rules
- Required in new vehicles in EU and many U.S. states
- Avoids future penalties or phase-outs
✅ 4. Safe and Non-Toxic
- A2L classification = mild flammability, non-toxic
- Lower combustion energy compared to hydrocarbons like R-290
- Safe when handled correctly in engineered systems
6. Limitations and Challenges
❗ Mild Flammability
R-1234yf is rated A2L, meaning mildly flammable under certain conditions. It won’t ignite easily, but precautions are necessary:
- Sealed systems

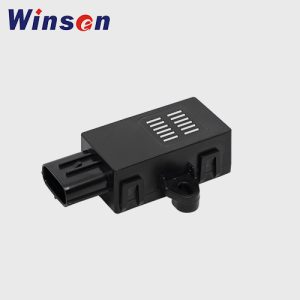

- R-1234yf Leak detection
- System compartment ventilation
❗ Cost
R-1234yf is significantly more expensive than R-134a due to patent restrictions and production costs. This affects replacement and recharge costs.
However, prices are declining as production scales and patents expire.
❗ TFA Formation
During atmospheric breakdown, R-1234yf forms trifluoroacetic acid (TFA), a persistent compound that may accumulate in aquatic environments. While current concentrations are low, future ecological impacts remain under study.
7. Safety and Handling Considerations
| Feature | R-1234yf Value |
|---|---|
| Flammability Class | A2L (Mild) |
| Flame Propagation | Slow |
| Auto-ignition Temp | 405°C |
| Leak Detection | Necessary |
| Storage | Keep away from flames/sparks |
Technician Tips:
- Use recovery machines specifically designed for R-1234yf.
- Never mix with R-134a.
- Always use compatible lubricants and system components.
- Ensure workshop ventilation.
8. Comparison with Other Refrigerants
| Property | R-134a | R-1234yf | R-1234ze | R-290 |
|---|---|---|---|---|
| GWP | 1,430 | 4 | <1 | 3 |
| ODP | 0 | 0 | 0 | 0 |
| Flammability | A1 | A2L | A2L | A3 (High) |
| Toxicity | Non-toxic | Non-toxic | Non-toxic | Non-toxic |
| Application | Auto, HVAC | Auto A/C | HVAC, chiller | Commercial fridges |
| Atmospheric Life | ~13 years | ~11 days | ~18 days | ~days |
9. Regulatory and Global Adoption
🌍 European Union
- EU Directive 2006/40/EC bans use of MAC refrigerants with GWP > 150.
- R-1234yf became mandatory in new models after 2017.
🌍 🇺🇸 United States
- Approved under EPA’s SNAP program.
- Included in California Air Resources Board (CARB) HFC phase-down schedule.
- Adoption widespread across U.S. automakers.
🌏 Asia-Pacific
- Japan and South Korea adopted R-1234yf in new vehicle models.
- China is expanding R-1234yf in response to Kigali commitments.
10. Future Outlook
🔮 Automotive Refrigerant of Choice
R-1234yf is expected to remain the dominant refrigerant in MAC systems due to its balance of safety, performance, and compliance.
🔬 Continued Innovation
- Development of hybrid R-1234yf/CO₂ systems
- Improved containment and leak detection technologies
- Expanded use in electric vehicles (EVs) and heat pumps
🌐 Toward a Circular Economy
Reclaiming, recycling, and reusing R-1234yf from end-of-life vehicles is becoming a critical step toward sustainability and cost control.
Conclusion
R-1234yf represents a significant advancement in sustainable refrigerant technology, particularly for the transportation sector. Its near-zero GWP, strong cooling performance, and regulatory approval make it an ideal successor to R-134a.
While cost and mild flammability present challenges, the automotive industry has shown that these can be effectively managed with training, equipment, and innovation.
As the world moves toward carbon neutrality and green cooling, R-1234yf will remain a key component in reducing the climate impact of refrigerants—offering an effective, scalable, and eco-friendly solution.
